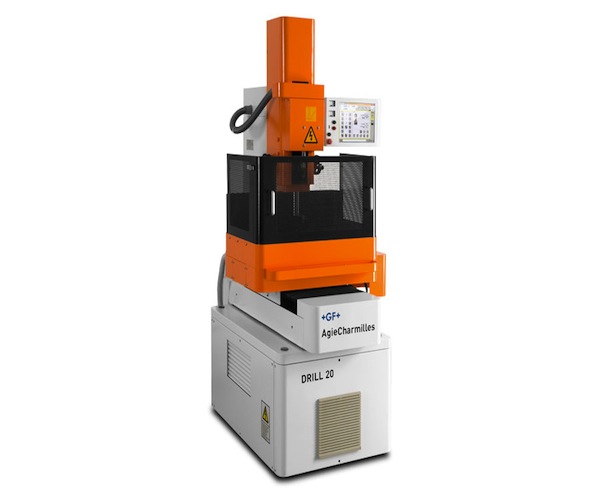

GF AGIE CHARMILLES DRILL 20
| Travel | |
|---|---|
| X, Y, Z travel |
300 x 200 x 300mm
|
| Workpiece and electrode | |
| Max. workpiece weight |
300kg
|
| Deionizing | |
| Electrode diameter |
0.3 up to 3mm
|
| Maximum drilling depth |
200mm
|
| Travel path of the electrode guide |
100mm
|
| Heavy duty generator |
30A
|
| General | |
| Mains connection |
3 x 400 V, 50/60 Hz
|
| Electric supply | |
| Maximum power consumption |
5kVA
|
| General | |
| Display |
Touch screen, 12.1”
|
| Deionizing | |
| Pump operating pressure |
70bar
|
| Machine | |
| Machine dimensions width x depth x height |
1345 x 910 x 1940mm
|
| Total weight (without dielectric) |
870kg
|
