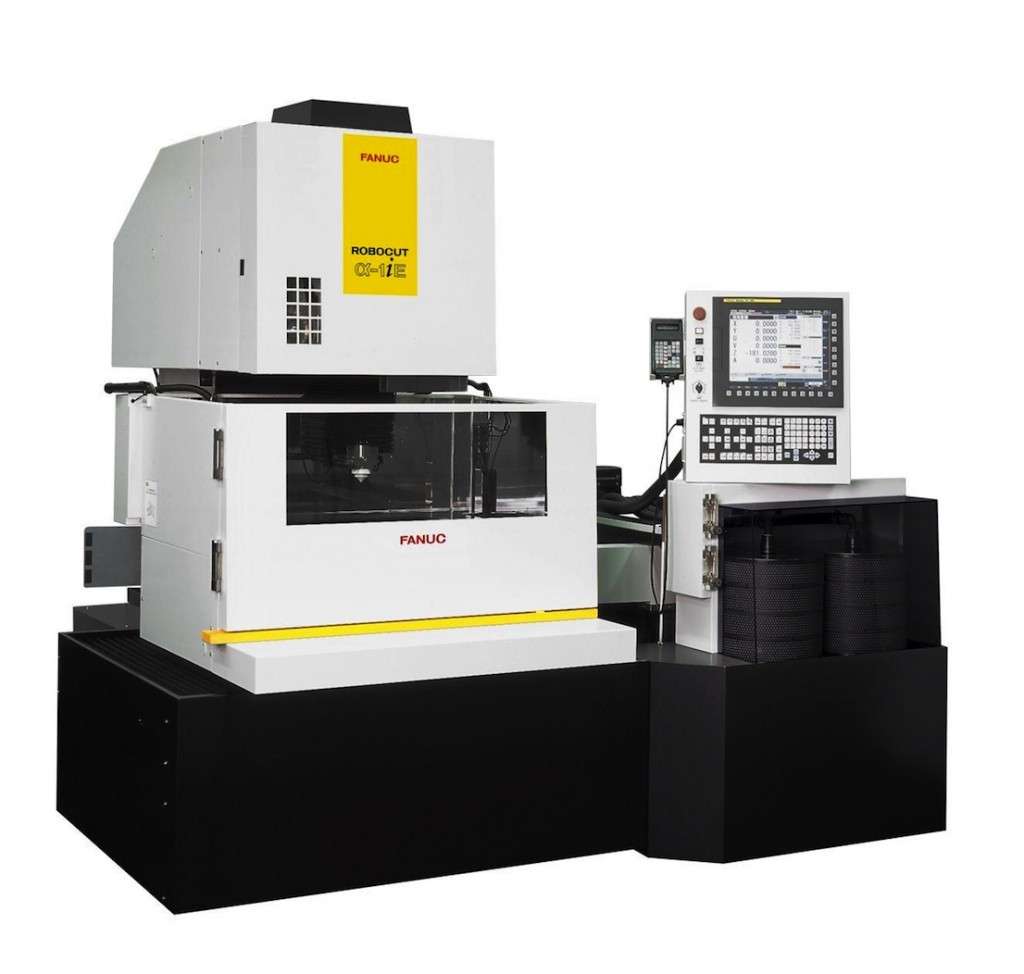

FANUC ROBOCUT
| X-Y-axes travel: | 600 x 400 mm |
| U-V-axes travel: | ± 100 mm |
| Z-axes travel: | 310 mm |
| Controller | FANUC 31i-WB |
| Max. work piece size: | 1050 x 775 x 300 mm ( option 1050 x 820 x 410 mm) |
| Max. work piece weight: | 1000 kg |
| Max draft angle: | ± 30°/150 mm and ± 45°/ 70 mm |
| Wire diameter: | Ø 0,10 ~ 0,30 mm |
| Wire coils: | 16 kg (option 30 kg) |
| Footprint (W/D): | 2430 x 2740 mm |
